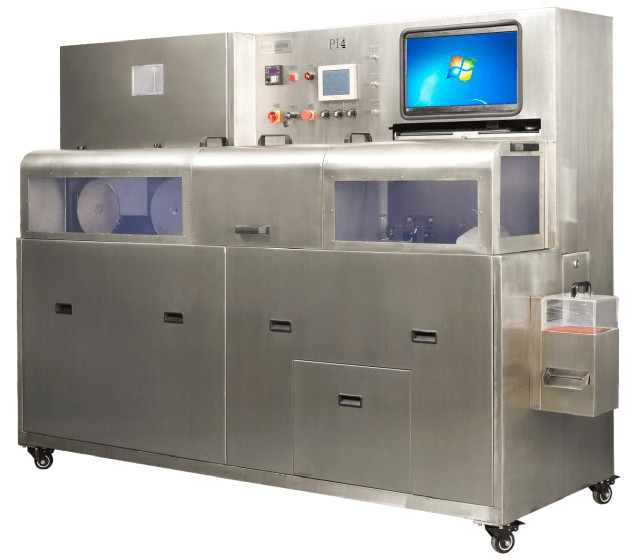

Full Automatic Hard Capsule Inspection Machine Pharmaceutical Constant Speed

Working Principle
Filed capsule after cleaning and polishing are put into the hopper,and will be placed in good order on carrier bar by precise feeding roller.There are four different function areas for defect inspection on our machine.In the first inspection area,black and white CCD camera will inspect the empty and partial-filling defects of capsules under the perspective light source.In the second inspection area,capsules could rotate at precisely calculated constant speed on roller system by servo motor,and color CCD camera will inspect the capsules with telescoped,cracking,unlocking defects before capsules filling,such as bubbles,black spots,unqualified printing,foreign capsules,etc.The third and fourth inspection areas are mainly to inspect both domes dented issues caused in the filling process.

Functions

1. Fully auto sorting and rejection of defective filled capsule enhances product quality,more consistent with cGMP standards
2. It employs multi-stage sorting method and several CCD cameras to inspect each capsule several times simultaneously so that it can completely remove defective filled capsules
3. It can easily save and retrieve various historical parameters and real time data to better support production quality control and tracking.
4. It can provide 100 percent correct sorting and rejection of defective filled capsules based on high-speed industrial computer.


Suzhou Halo Pharmatech Co., Ltd ———— Global Superior Manufacturer Of Solving capsule/tablet weight differences

Suzhou Halo Pharmatech Co. Ltd is a member of China Pharmaceutical Equipment Industry Association and China Weighing Instrument Association (CWIA). We highly value technical innovations and have got 117 patents by the end of 2015.

Halo Pharmatech was established, the project of capsule / tablet checkweigher was established, and the project of capsule separating machine was established.In 2006.

● The meaning of the LOGO

This logo is a combination of the Chinese name of the company "hanlong" and the English name "HALO" initial letter "H" .The "H" letter is slightly deformed, the pattern is naturally formed in accordance with the symbol of the industry ,adopts the common red hat white body, and the "H" letter adopts the purple color with a sense of science and technology.The logo design is ingenious, stable and atmospheric, square and symmetrical, firm and upright, with good visual effect and profound meaning, in line with the trend of international development.

● The enterprise culture

Enterprise spirit: honesty, innovation, diligence, customer first

Enterprise mission: in the field of pharmaceutical production, we combine quality management with automation system to realize the automation, informatization and Intellectualization ,to help enterprises monitor drug production process better ,improve drug production quality and serve human's healthy !

Corporate vision: to become a well-known supplier of pharmaceutical production quality management , and aim to providing our products to every pharmaceutical enterprise.

● The Certification

“Innovations only, the first or the best” is our motto. To cater to the need of customers and the market, we keep developing new models and transferring technology to production upgrades for our customers.
